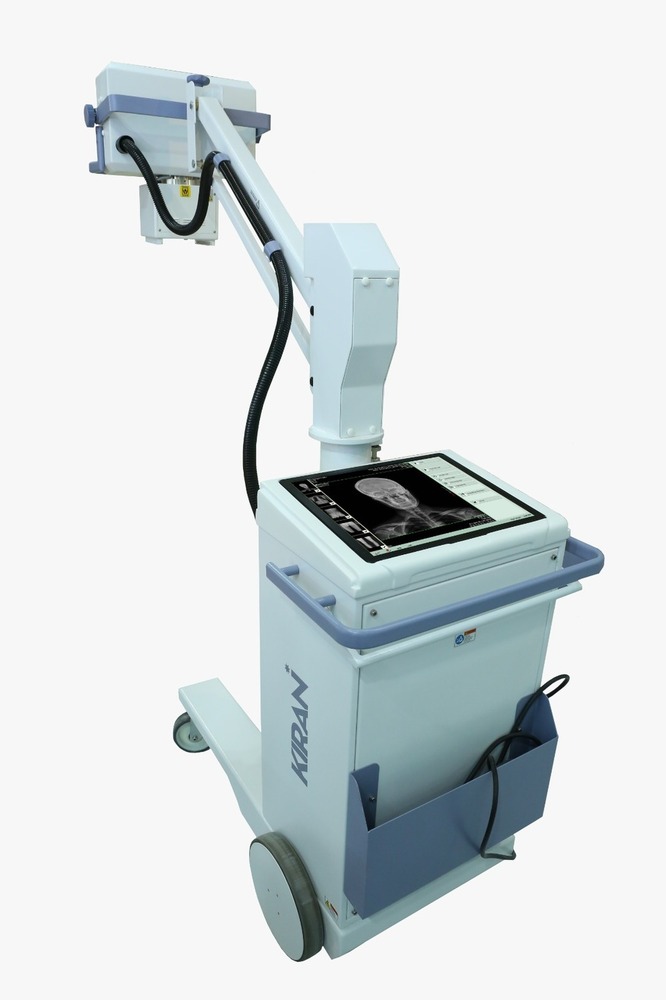

Ultisys Mobile Radiography System (4.0kW)

Ultisys Mobile Radiography System (4.0kW) Specification

Height
1370 mm

Display Type
Digital

Humidity Range
30% to 75% RH (non-condensing)

Storage Capacity
Image Storage via DICOM Connectivity

Temperature Range
0C to 40C

Color Code
RAL 9016 / Custom

Phase
Single Phase

Power
4.0kW

Properties
Portable, High Frequency, User Friendly

Accuracy
High Precision Exposure Control

Automation Grade
Semi-Automatic

Weight
Approx. 120 kg

Use
Diagnostic Imaging

Shape
Mobile Trolley

Material
MS Powder Coated

Treatment Type
Radiographic X-ray Imaging

Frequency
50/60 Hz

Product Type
Mobile Radiography System

Dimension (L*W*H)
Approx. 1400mm x 600mm x 1370mm

Function
Digital Radiography, Image Processing

Suitable For
Hospitals, Clinics, Emergency, Bedside Use

Application
General Radiography, Point-of-care X-ray

Voltage
220V AC

Power Source
Electric

Display
Touchscreen LCD

Image Storage
Up to 100,000 images (with extended storage)

Accessories
Remote Control, Lead Apron, Positioning Aids

Battery Backup
Up to 2 hours (optional)

mAs Range
0.32 - 320 mAs

Exposure Time
0.01 - 6.3 seconds

User Interface
Touch keypad and graphical display

Cooling System
Air Cooling

Maximum Output
100 mA @ 40-100 kVp

Safety Features
Overload Protection, Automatic Shut-off

X-ray Tube
Stationary anode with dual focus

Imaging Method
Digital (with optional flat panel detector)

Compatibility
PACS/RIS System Integration

Networking
DICOM 3.0 Compliant

Mobility
Swivel castor wheels with locking system

Ultisys Mobile Radiography System (4.0kW) Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Week

Delivery Time
3-4 Week

About Ultisys Mobile Radiography System (4.0kW)

Find exceptional capability and flawless design in the Ultisys Mobile Radiography System (4.0kW), a commanding solution featured for hospitals, clinics, and point-of-care settings. This mobile X-ray unit offers personalised digital imaging with a tube voltage range of 40-125kV and tube current from 32-100mA, ensuring high precision and reliability. With embedded medical OS, touchscreen LCD, and optional digital flat panel detector, Ultisys excels in portability and user-friendliness. Secure, manual movement, advanced safety features, and customisable aesthetics make it the preferred choice for professionals seeking dependable, high-frequency radiographic imaging.

Competitive Advantages & Application Directions

Ultisys Mobile Radiography System offers unmatched portability, user-centred design, and exceptional imaging precision. Its manual push/pull mobility and swivel arm allow use in emergency, bedside, or general radiography applications. Easy to power and operate with embedded medical OS and touchscreen interface, the unit is suitable for hospitals and clinics. Primary advantages include high-frequency imaging, DICOM connectivity for seamless data exchange, and optional battery backup for continuous operation in diverse healthcare environments.

Certifications, Exports, and Secure Shipping

The Ultisys Mobile Radiography System is equipped with all required medical certifications, assuring compliance and safety. Featured in main export markets across Asia, Africa, and Europe, each unit undergoes secure shipping to guarantee flawless condition upon arrival. Average delivery time varies by location and exchange requirements but is optimised for prompt shipment. Clients benefit from after-sales support, easy order management, and reliable packaging for international distribution, ensuring seamless deployment at healthcare facilities worldwide.

FAQ's of Ultisys Mobile Radiography System (4.0kW):

Q: How does the Ultisys Mobile Radiography System enhance workflow in clinical environments?

A: The Ultisys system streamlines the radiography process with manual mobility, touchscreen controls, and DICOM connectivity, allowing clinicians to perform diagnostic imaging efficiently at the patient's bedside or within tight clinical spaces.

Q: What are the key safety features integrated into this system?

A: Ultisys includes overheat and overload protection mechanisms, a manual emergency stop, and foot-operated mechanical brakes, providing comprehensive operational safety for both patients and medical staff.

Q: Where can the Ultisys Mobile Radiography System be most effectively utilised?

A: This versatile system is ideal for hospitals, clinics, emergency care settings, and bedside imaging, offering flexibility for general radiography and point-of-care diagnostics.

Q: What is the process for exchanging data using this device?

A: Medical images are securely stored and transferred via DICOM 3.0 over LAN or Wi-Fi, facilitating seamless data exchange between departments and healthcare facilities.

Q: When is battery backup necessary for operation?

A: Battery backup is essential during power outages or when portability is required in areas without stable electricity, offering up to 2 hours of uninterrupted diagnostic imaging.

Q: How does one personalise Ultisys to suit facility requirements?

A: The unit's color code can be customised (RAL 9016 or as specified) and comes with optional digital flat panel detectors and battery backup to fit unique operational needs.
